RailCore II 300ZLT Full Kit
RailCore II 300ZLT Full Kit
Moving forward you can purchase our kits and fully assembled printers through Filastruder
The 300ZL not tall enough for you, the RailCore II 300ZLT Kit has you covered! International orders please fill out form prior to ordering.
***If shipping International, Purchaser will be responsible for Taxes/Fees/Dues upon delivery!***
If you have wanted a RailCore but didn't want to deal with the hassle of sourcing and building wiring harness, we have the solution! The Kit comes complete with all the components needed to complete your printer from the aluminum stepper brackets from 713 Maker to the 3D printed parts. All printed structural printed parts will be printed out of Atomic Filaments CF PETG and non structural parts are printed out of Atomic Filaments Dark Cherry PLA.
So whats different between the 300ZL and ZLT?

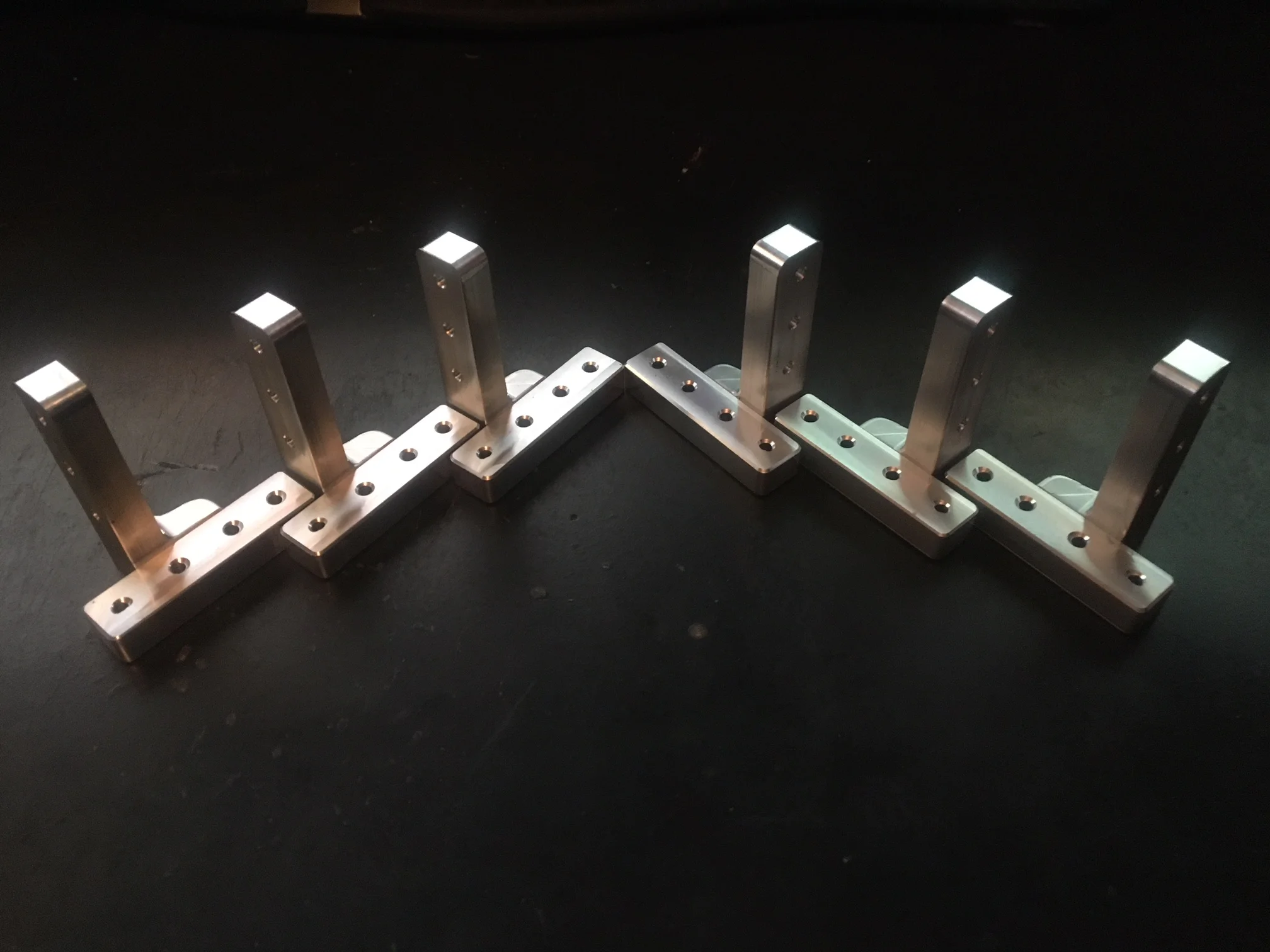

Not only are you getting 300mm of additional build volume, the L Brackets and Z Yokes are replaced with the aluminum components!
V6 Gold: The V6 Gold comes with a plated copper block, E3D Premium Heater, thermistor and 0.4mm Hardened Steel Nozzle.
Mosquito: The Mosquito comes with an E3D Premium Heater and thermistor with a 0.4mm Hardened Steel Nozzle
Mosquito Magnum: The Mosquito Magnum comes with a E3D Premium Heater and thermistor with a 0.8mm Hardened Nozzle for large prints.
BYOH: This option comes with no hotend but it will include an E3D Premium Heater and thermistor to maintain the plug and play feature of the wiring harness.
Standard: The standard bed is a 1/4” sheet of MIC6 aluminum that will come with a 12”x12” sheet of Buildtak
Mag Bed: This is the 713maker Mag Bed and will come with a Spring Steel Flex Plate with PEI
Build Volume (XYZ): 300mm x 300mm x 600mm
Duet WiFi paired with the Duex 5, not some piddly duex 2. This is so the E3D tool changer can be easily implemented without electronics upgrades.
BLtouch Bed Probe
Kenovo Heated beds
E3D V6 Gold edition with hardened nozzle or Slice Engineering Mosquito with hardened Nozzle
Bondtech BMG Extruder
Aluminum Stepper and idler mounts from 713 Maker
Aluminum X carriages, L Brackets and Z Yokes from Mandala Rose Works
Meanwell Power Supply
Zyltech Linear Rails
8x2mm pitch lead screws with Delrin Nuts
1.8 degree steppers on the Z to give .01mm per step
0.9 degree steppers for X,Y and Extruder
Complete wiring harness, labeled to keep wiring time to a minimum
ALL 3D PRINTED PARTS INCLUDED! Printed out of Atomics Dark Cherry PLA and Atomic Carbon Fiber Reinforced PETG!
We are limiting the use of printed parts as structural components, the kits come standard with the aluminum stepper and ider mounts from 713 Maker and the aluminum x carriages, L Brackets and Z Yokes from Mandala Rose Works. We are milling the aluminum beds in house out of MIC 6 plate to ensure it is completely flat!
We chose to go with the Bondtech BMG extruder due to its high reliability and consistency. We felt with such a great printer we might as well go with the best hardware we can get!
We will be testing every linear rail set to ensure they are up to the task while also grouping them based on preload to ensure you get matching preload on each axis!
We are shipping a complete plug and play wiring harness system with each kit! You no longer have to deal with cutting stripping and crimping your own wires….. We’ve got you covered!
Of course we are are shipping the Duet WiFi and Duex 5 with each kit. Why the 5 when the 2 is the required minimum…. Clearly we don't mess with minimums! There should be upgrades in the future that will need the Duex 5 so why not just save you time in the future and give it to you now.
We are milling the side panels in house and every floor will get the RailCore logos milled in, simply because it looks AWESOME!
Long story short you will get all components and hardware needed to build the printer, from linear rails to nuts and bolts. All you need is the tools and the time we have everything else covered!
Tools Required to Complete the Build
Soldering Iron (to set threaded inserts)
Hex Wrenches 2mm, 2.5mm and 3mm
5.5mm Nut Driver
Philips Head and Flat Screw driver
Red RTV for mounting the bed thermistor.
